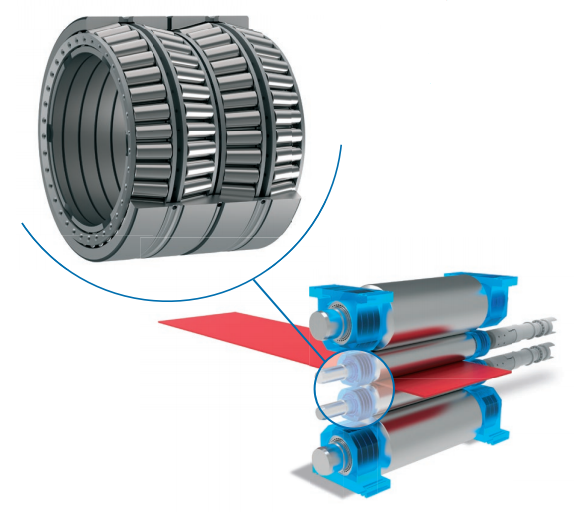

Work and back-up rolls represent key components of rolling mill factories. Both have major influence on the quality of the steel being rolled and both are given huge requirements in terms of variability, efficiency and cost saving when rolling. Rolls are usually mounted in sets of four-row tapered roller bearings (in case of work rolls) or sets of four-row cylindrical roller bearings (in case of back-up rolls). The function of the work rolls is to shape the material being rolled and therefore are in a direct contact with hot metal. Back-up rolls serve to minimize any defl ection of work rolls. The scope of such application is to handle dynamic, heavy and impact loads in an extreme environment – high working temperatures, in an environment fi lled with dust and metal scales. Rolls are often dismounted from their working position, re-grinded and mounted back. Considering all these factors together, the bearings used in work and back-up rolls are exposed to and must be able to work in extreme conditions while meeting all the necessary quality requirements.
工作辊和支承辊是轧钢厂的关键部件,二者对轧钢质量都有重要影响，对轧钢的变异性、效率和成本都有很大的要求。轧辊通常安装在四列圆锥滚子轴承组（工作辊）或四列圆柱滚子轴承组（支承辊）中。工作辊的作用是使被轧制的材料成形，从而与铁水直接接触。备用辊用于减少工作辊的任何偏差。此类应用的范围是在极端环境中处理动态、重型和冲击载荷——在充满灰尘和金属鳞片的环境中的高工作温度。轧辊通常从其工作位置卸下，重新研磨并装回原处。综合考虑所有这些因素，工作辊和支承辊中使用的轴承必须能够在极端条件下工作，同时满足所有必要的质量要求。

ZKL提供许多适合不同用途的四列圆锥滚子轴承的不同设计，例如面对面布置、背对背布置、圆柱孔、圆锥孔、轴承孔中的螺旋槽等。ZKL四列圆锥滚子轴承主要配备销式保持架。

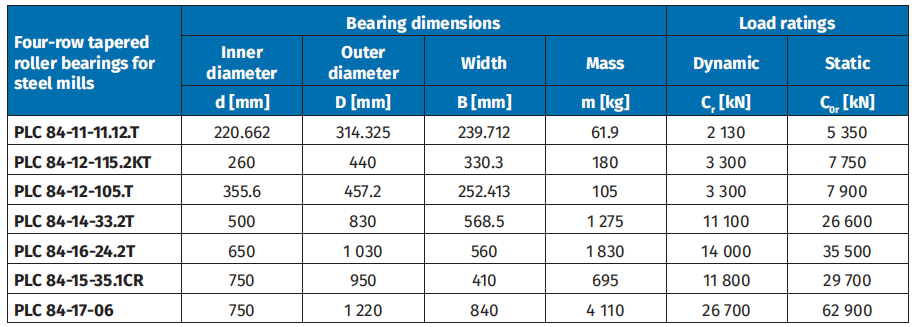

上述轴承通常用于轧机的工作辊。ZKL提供了一个完整的生产范围，从200毫米的孔径开始到1600毫米（外径）。
